ERIE
CANAL - LOCK E 16 - ST. JOHNSVILLE |
| Length |
300 feet |
| Width |
43.5 feet |
| Lift |
20.5 feet |
| Next EastBound Lock |
E 17 - 7.7 miles |
| Next WestBound Lock |
E 15 - 6.7 miles |
| Air Draft Restriction at Lock |
20 feet - Overhead Power Cable Bridge |
 |

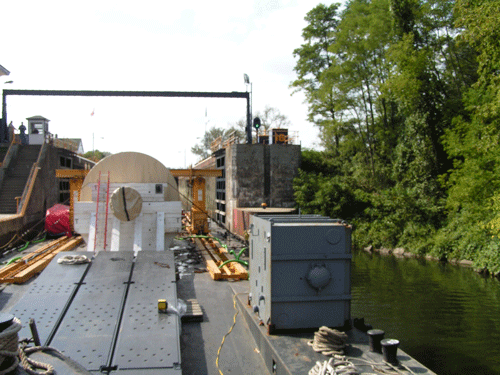

Lock E 16 Low Side

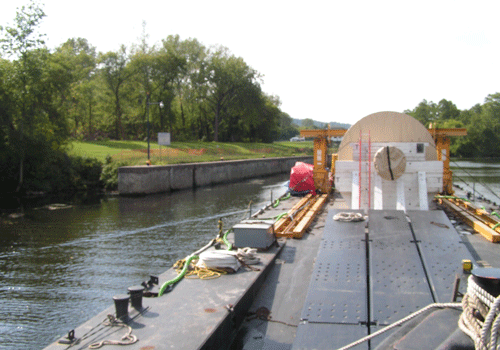

Westbound - Mohawk sets barge to port
|
|
Lock E 16 Low Side
|
 |
 |

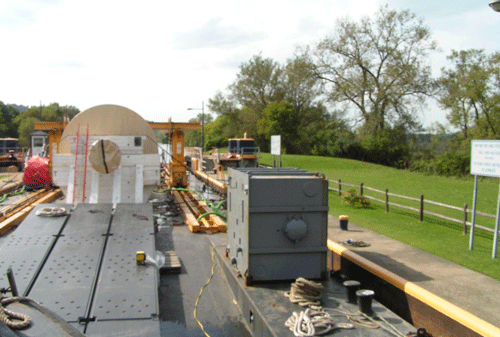

Lock E 16 Inside |

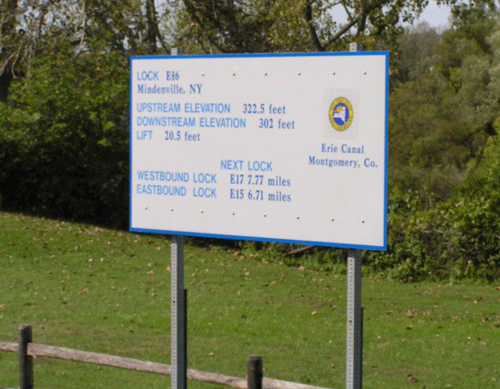

| Lock E 16 Sign |
 |
 |

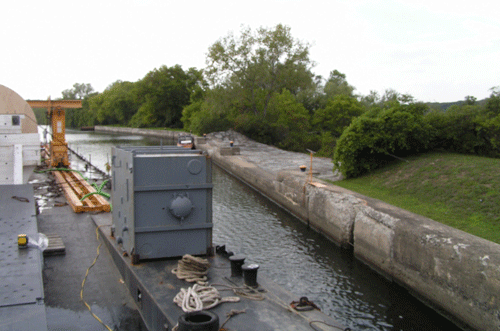

Lock E 16 Upper wall
capstans |
|
Lock 16 High Side Exiting westbound

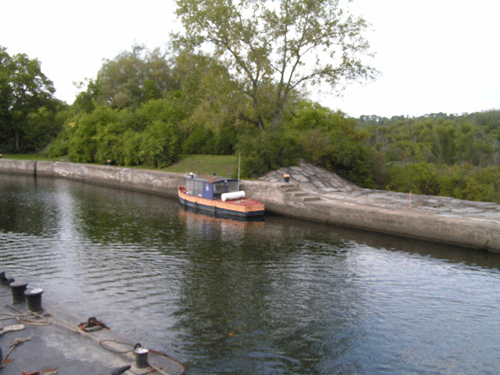

Lock tender at spillway
|
 |
 |

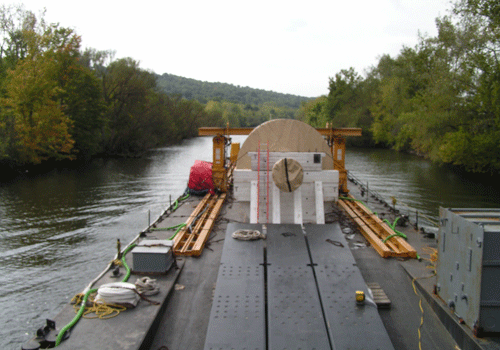

West of Lock 16

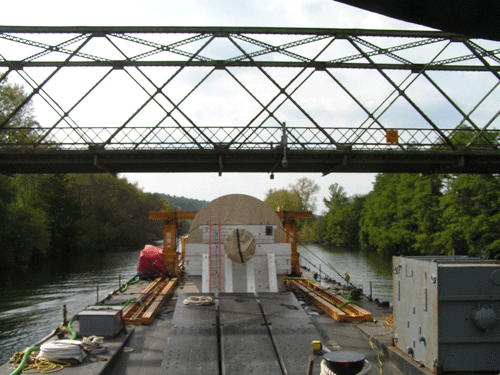

Bridge E 27
Hor Clearance 120'
Vert Clearance 23'
|
| West of Lock 16 |
 |
